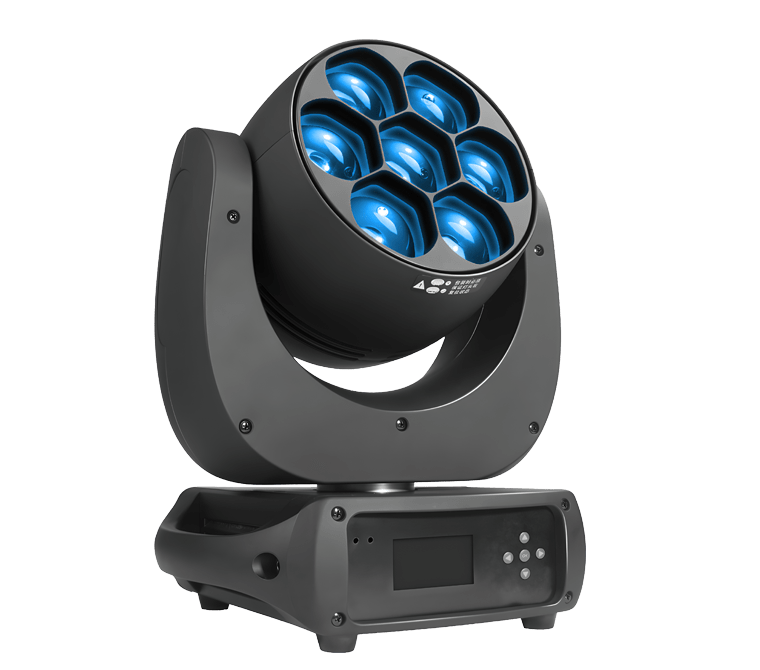

The Dynamo 7 is part of a new generation of moving head wash/beam fixtures, using 7 × 40W RGBW LEDs, individually controllable. The version 2 optimized the zoom motor, resulting in a quieter mechanism that allows a beam angle of 4.5–36° and a field angle of 9–52°. An ArtNet signal output has also been added.
Light Source: 7 × 40W RGBW LEDs
Current: 2.5 A
Max Power Consumption: 300 W
Voltage: 100–240V AC, 50/60Hz
Motorized Zoom: 4.5–36° (beam angle), 9–52° (field angle)
Pan/Tilt: 540° / 270° (8–16 bits)
Color Mixing: RGBW
Control Protocols: ArtNet, RDM, DMX512, and Web Server
Display: Built-in for automatic or custom control
Strobe: 0–25 Hz
Dimmer: 0–100% (16-bit)
Connections: DMX XLR3/5 in/out, RJ45 in/out, ArtNet out, power in/out
Construction: Flame-retardant plastic (V0)
Color: Black
Certification: CE, MET
Dimensions: 293 × 249 × 375 mm
Weight: 9.3 kg
Cooling: Forced convection
Operating Environment: 0°C to 45°C, dry location
Protection: IP20
