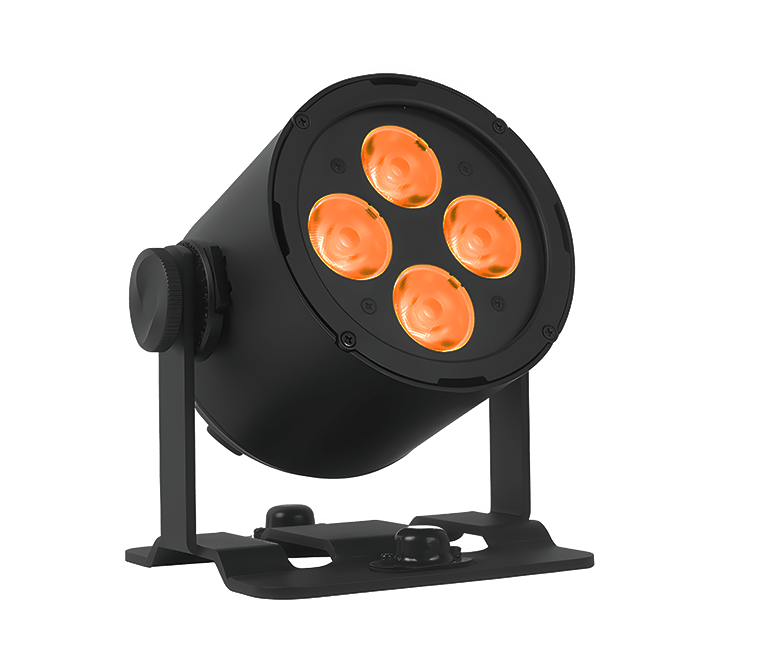

eMotion PAR is a sophisticated stage battery wall wash light that is lightweight and portable.Equipped with 4*30W 5 in1 leds, it can present
colourful colors to meet the diversified needs of stage performances.
The total power of the light is 51W, energy-saving and efficient.Built in color mixing,variable color chasing,strobing and fading effect. This light can
work for 4 hours under full power and 8 hours under auto mode to meet the demand of long time performance. It supports 4.5 hours of fast charging,
which effectively shortens the waiting time.
Wireless control function, reception range up to 150-160m, users can choose Chinese or Lumen radio wireless according to demand. In addition, it
also supports app control for operation using bluetooth.
Wide range of applicable scenarios, including outdoor advertising, stage performances, event parties, indoor and outdoor decorations, commercial
spaces, cultural facilities, public buildings and landscape lighting, etc. It is an ideal choice for all kinds of stage lighting.
Optical Data
LED expected lifetime:50000H
Lightsource:4*30W RGBMA
Native lens options:10°
Color Temperature range：1750-20000K optional
Battery working time @ full light:4H
Battery working time @ auto:8H
Battery charging time:4.5H
DC Input(18V/5A)
Photometric
Efficancy:212 lm
Luminous flux:3150 lm
illuminance Lux @ full light 1m: 16120 lx
illuminance Lux @ red 1m: 1839 lx
illuminance Lux @ green 1m: 4800 lx
illuminance Lux @ blue 1m: 656 lx
illuminance Lux @ mint 1m: 7150 lx
illuminance Lux @ amber 1m: 3218 lx
Physical
Color options:Black-RAL 9004
IK class:IK07
IP class:IP65
Lens material:PE
Body Material:Aluminium
Net dimensions:177*160*187mm
Net weight:2.87 kg
Features
Color calibration:0-255
Dimming curve:CURVE 1/2/3/4
Dimmer:0-255%
Filters:hand-tight
LED panel:4*30W RGBMA
Strobe:0-20Hz
Tilt:360°
Indicator:LCD
Electrical Data
Electrical protection:(SHORT)/(O.C.P)/(O.V.P)
Input voltage,absolute max. Rating:DC 18V/5A
Input voltage,nominal:DC 18V
AC Power,max:51W
AC Power,nominal:25W
Total power:51W
LED PWM Frenquency:1K-18KHz
Power Max.Out:51W
Power Linking @ Max Power Consumption:51W
Power Linking @ Constant Power Consumption:25W
Power Supply Unit:(SHORT)/(O.C.P)/(O.V.P)
Standby power consumption:1W
Operator and Control
16-bit control
DMX channels: 05 / HSV / 06 / 09 / 12 / 17
DMX modes:6
Protocol:USITT DMX512A,RDM ANSI E1.20,WI DMX
Setting and addressing:Manual settings at the display buttons/RDM
Bluetooth & NFC
Connections
Power Connection:DC022B-with nut 5.5*2.1-capable of 3A current-plastic in black
Cable Length (power):European Double-head 1.5m*0.75m㎡
Max output power:
Max Input：2.5 A
Max Output：8 A
