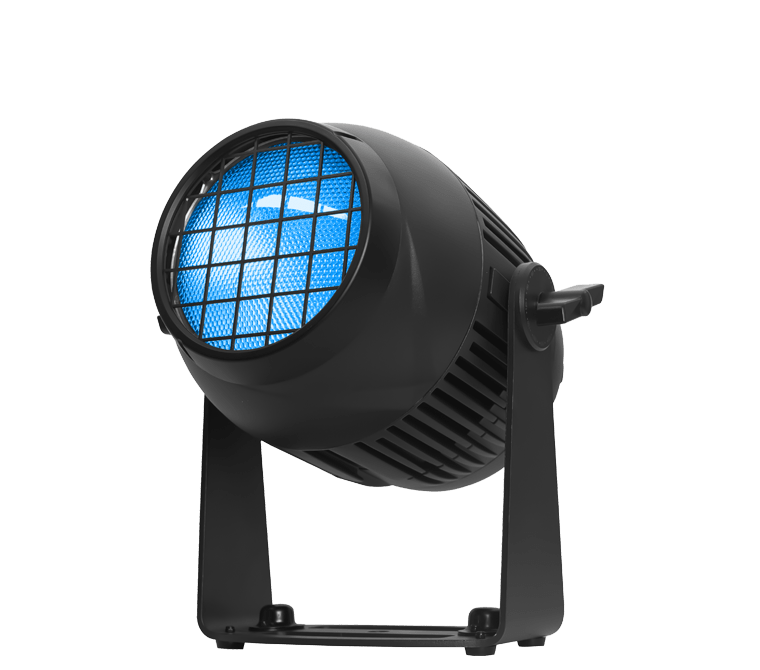

BOLT C

DATASHEET
USER MANUAL
REQUEST A QUOTE
  • SPECIFICATIONS

Source: 1x 400W RGBLA LED

Colour Temperature: 1750-20000K

CRI Ra: 96 @ 2500K and 93 @ 20000K

Brightness: 20500 lumens (76,3 lumens/watt); 459 lux @ 5m

Beam Angle: 50 degrees (87 degrees field angle)

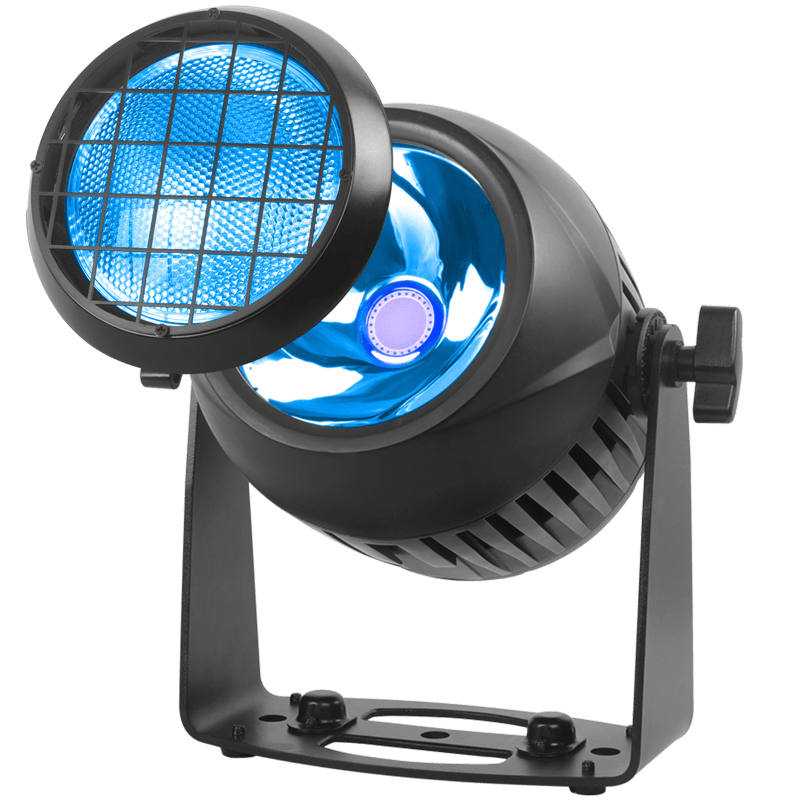

Lens: interchangeable magnetic lens for standard blinder effect or fresnel effect

Dimmer: 0-100%

Strobe: 0-20Hz

Control Protocols: DMX512A, RDM ANSI E1.20

Tilt Movement: 0-270 degrees (manual adjustment)

Max. Power Consumption: 320W

Dimensions: 223,5 x 255,5 x 287 mm

Weight: 4,5 Kg

IP Grade: IP65

Rigging: 1x omega clamp

  • IMAGE GALLERY
  • RELATED PRODUCTS

D-BOLT C

D-BOLT C

Main Source: 2x 400W RGBLA LEDs

Secondary Source: 2x LED stripes, each with 24x 2W RGB LEDs

Colour Temperature: 1750-20000K

D-BOLT W

D-BOLT W

Main Source: 2x 300W Warm White LEDs with Red Shift Effect (using additional red and amber LEDs)

Secondary Source: 2x LED stripes, each with 24x 2W white LEDs

Colour Temperature: 1750-3000K

BOLT W

BOLT W

Source: 1x 300W Warm White LED with Red Shift Effect (using additional red and amber LEDs)

Colour Temperature: 1750-3000K

CRI Ra: 81
