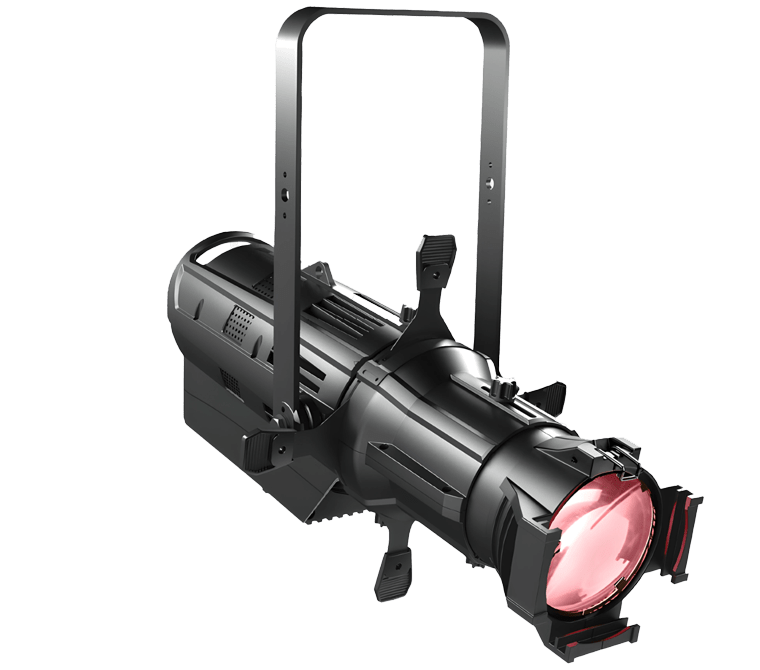

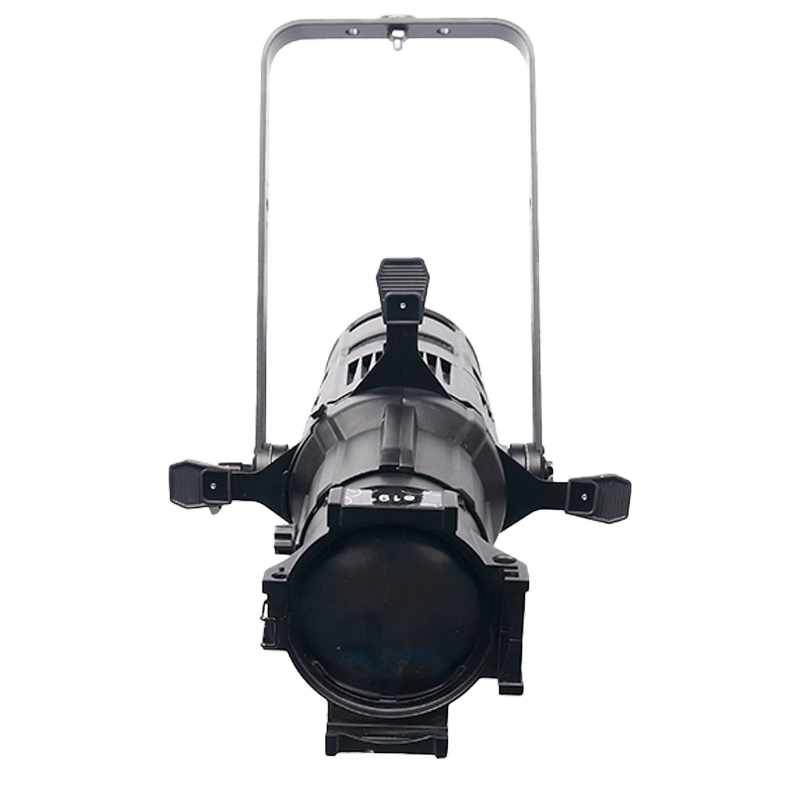

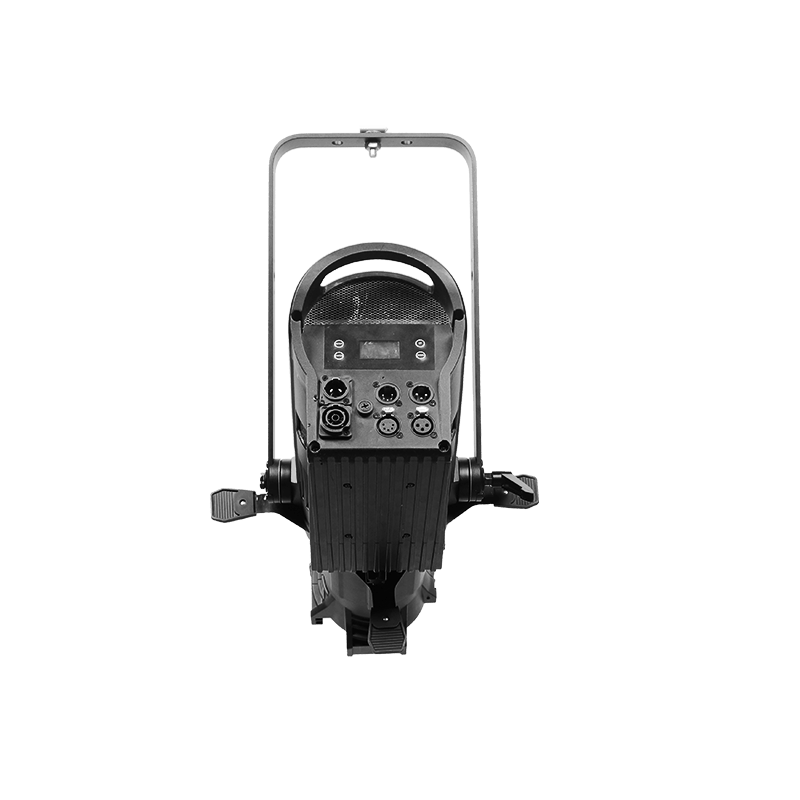

ECLIPSE 270 C6 is a outstanding RGBALC 6 color profile, covering full color range. It is compated with CCS technology, precised CCT from 1800-10000K, reaching super high CRI >= 90. ECLIPSE 270 C6 also has the perfect dimming curve and crystal-clear projection. It´s designed for theater, opera, TV, rental and show applications!
Optical system
Light source: 270W RGBALC
Luminous flux: 10276lm
CCT: 1800K-10000K
Angle: 5°/10°/14°/19°/26°/36°/50°/15°-30°/25°-50°
CRI RA/CRI R9/CQS/TLCI: 95/90/95/80
Control System
Dimmer: 0-100% 16Bit
Cooling: Forced convection
Control: DMX512, RDM
Display: On board Control, 0-25Hz Strobe
Con Personality: BASIC (3CH), SSP (8CH), TOUR (13CH), TR16 (20CH), HSIC (7CH), CMY (10CH)
Appearance
Size: 578 x 371 x 226mm
Weight: 8 kg
Casing: Die-cast aluminum
Color: Black
Electrical Specs
Voltage: AC100-240V,50/60Hz
Max. Power: 280W
Power Connection: Power in and out
DMX XLR: 3pin or 5pin in and out
Work Environment
Ambient Temp: 0º-45º
IP Rated: IP20
Certification
CE, MET
