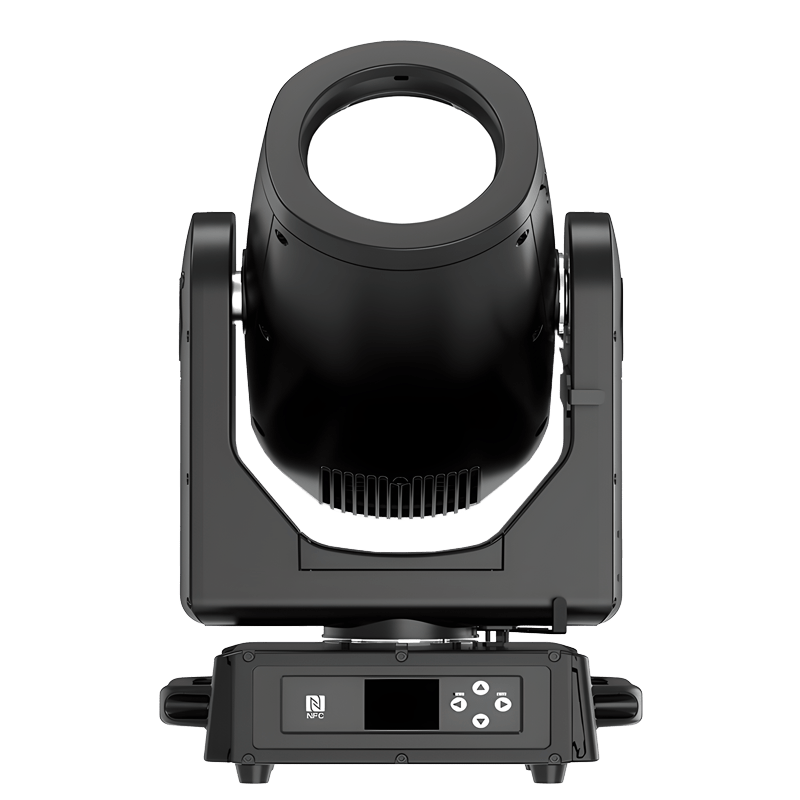

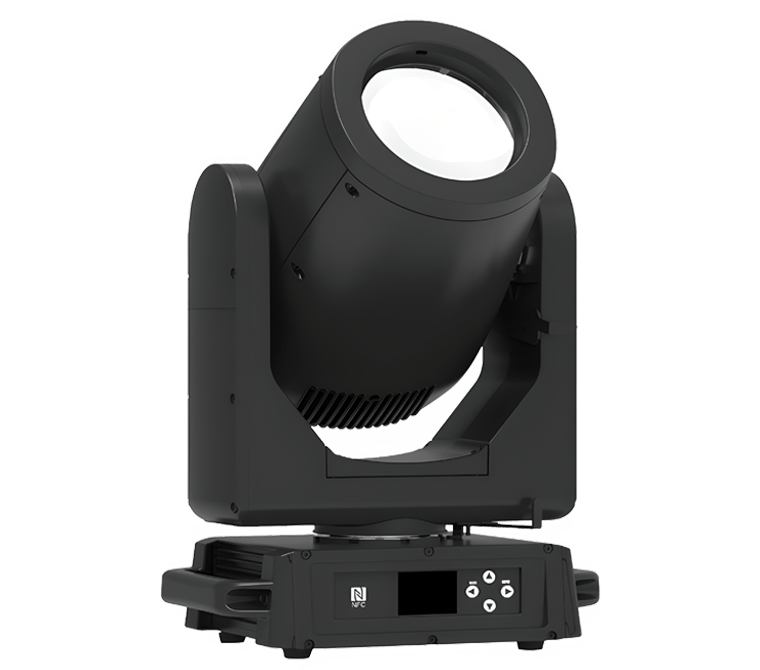

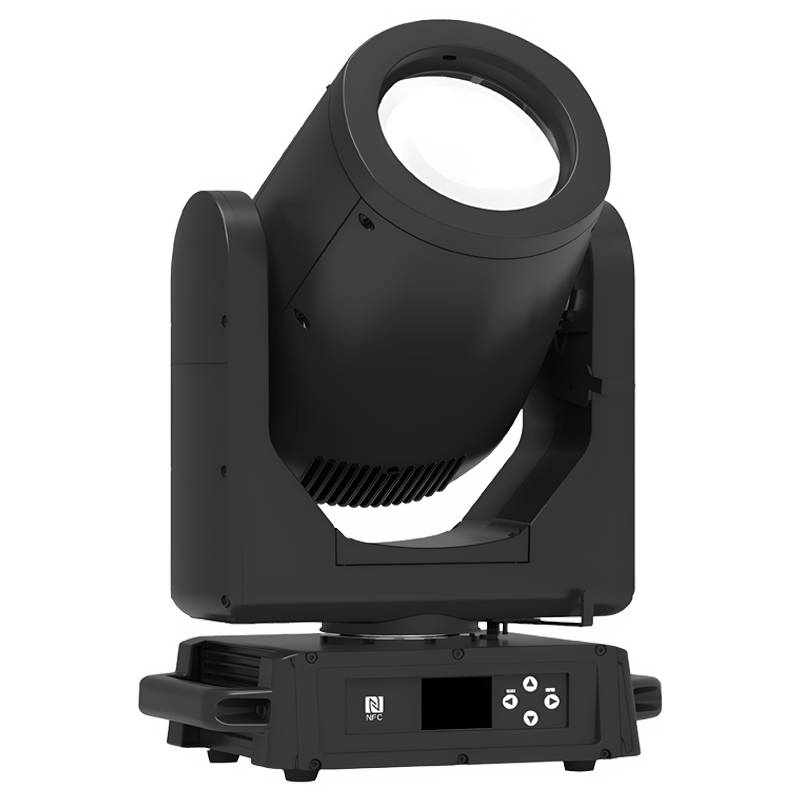

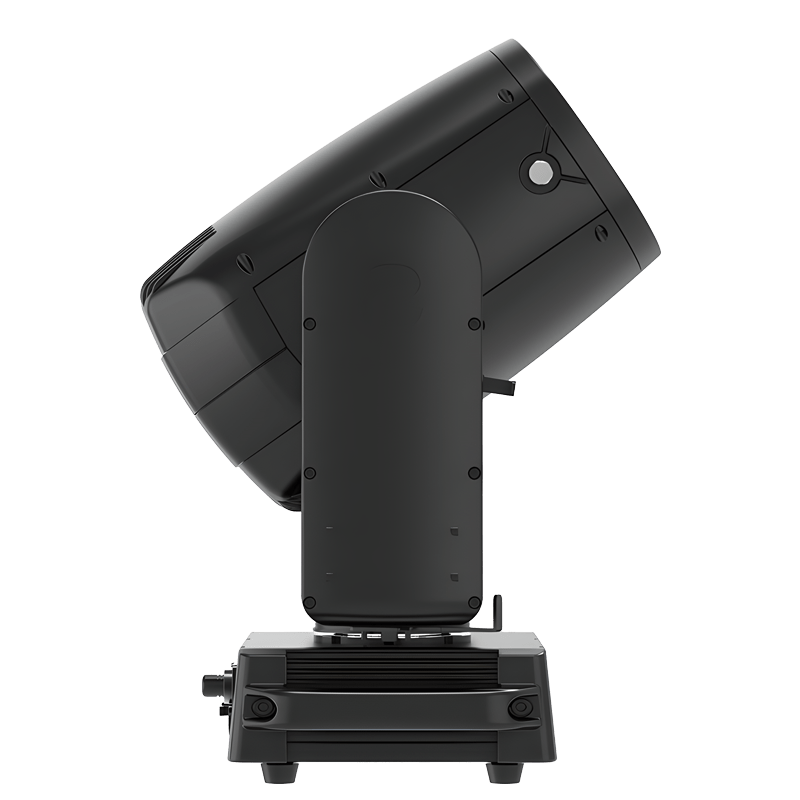

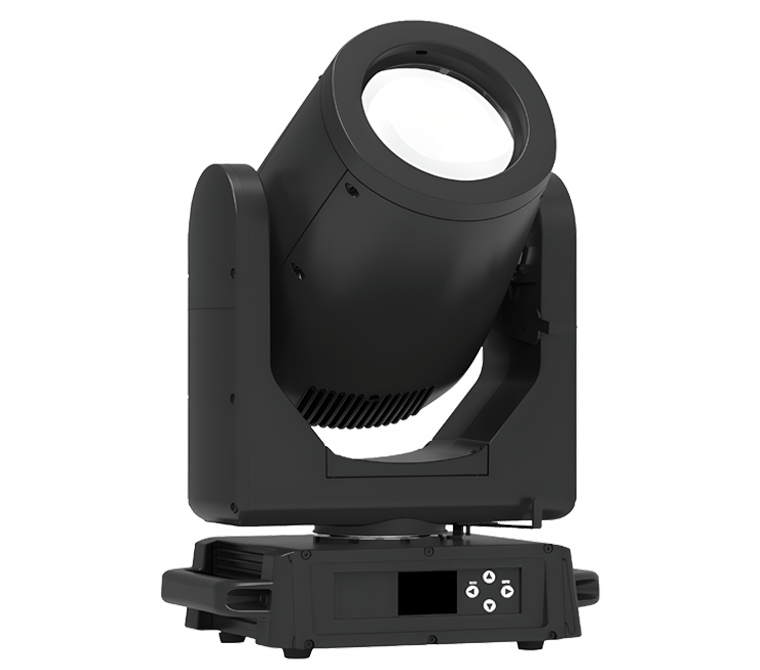

LaserBeam One is an innovative laser beam fixture designed to deliver an exceptional infinite beam effect through its unique optical system. Equipped with a powerful 120W laser light source, a large 135 mm front lens and an ultra-narrow 1.2° beam angle, it produces an intense, razor-sharp beam with illuminance reaching up to 100,000 lux at 20 metres.
Featuring a wide selection of gobos and prisms, the LaserBeam One offers outstanding creative versatility for a broad range of dynamic lighting effects. Its professional CMY colour mixing system ensures smooth and seamless colour transitions, while the infinite X-axis rotating effect creates striking three-dimensional visual atmospheres.
Built with a lightweight aviation-grade aluminium housing, the LaserBeam One weighs just 19.6 kg and is rated IP66, making it ideal for both indoor and outdoor applications. Designed for reliability and performance, it is perfectly suited for concerts, touring productions, theatrical performances, television, architectural lighting and urban landscape installations.
Optical system
Light source: 120W LASER
Luminous flux: 3300lm
Lens diameter: 135mm
Angle 1.2° (20m @ 100,000lx)
Control System
Pan/Tilt rotation: Infinite Pan, Tilt 270° (8-16 bit)
dimming: Opera dimming effect (0-100% 24Bit dimming)
Cooling system: Forced convection
Functional effect: Display control, custom mode, 0-25Hz stobe
Channel mode: BASIC(19CH), STANDARD(23CH), EXTEND(27CH)
Control protocol: DMX512, RDM, W-DMX
Effect synthetic system
Rotation gobo: 12 rotation gobos
Colors: 1 color wheel, 19 color + white, rainbow water effect
CMYK: CMY
Prism: one 24 facet prism +one 5 linear prism, can be overlayed
Frost: one frost + one rainbow color wheel
Appearance
Size: 330x222x518mm
Weight: 19.6KG
casting: Die casting magnesium aluminum
Color: Black
Electrical Specs
Voltage: AC100-240,50/60Hz
Max.Power: 200W
Power Connection: Power input and output
Signal socker: 3pin or 5pin in and ou
Work Environment
Ambient Temp: -20ºC-45ºC
IP Rated: IP66
Certification
CE
